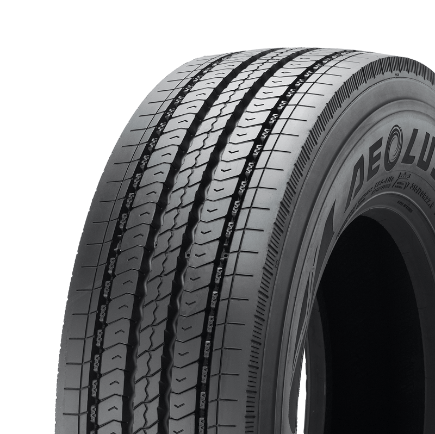

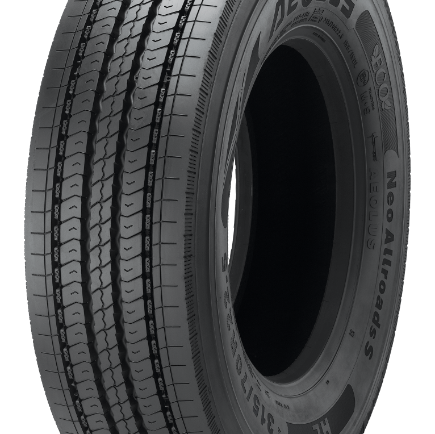

NEO ALLROADS S
- Suitable for Euro 6 legislation (High Load)
- Long life-span thanks to extra wide and extra deep pattern
- Safe driving and braking thanks to intelligent pattern with 4 Z-shaped longitudinal grooves
- Perfect handling on dry and wet surfaces thanks to refined pattern structure
- Noise-friendly due to optimised pattern design
- Ingenious rubber mix ensures balanced heat control
- Resistant against stone build-up due to interchanging pattern grooves
Technical data
Scroll naar rechts voor meer
| Size | Profile | LI/SS | TL/TT | 3PMSF | Rolling Resistance | Grip | Sound | |
|---|---|---|---|---|---|---|---|---|
| 205/75R17.5 | NEO ALLROADS S | 124/122M | TL | Details | ||||
| 215/75R17.5 | NEO ALLROADS S | 126/124M | TL | D | B | 69 dB () | Details | |
| 215/75R17.5 | NEO ALLROADS S | 126/124M | TL | D | C | 72 dB () | Details | |
| 235/75R17.5 | NEO ALLROADS S | 132/130M | TL | D | C | 72 dB () | Details | |
| 235/75R17.5 | NEO ALLROADS S | 132/130M | TL | D | C | 73 dB (2) | Details | |
| 245/70R17.5 | NEO ALLROADS S | 136/134M | TL | D | C | 72 dB () | Details | |
| 265/70R19.5 | NEO ALLROADS S | 140M | TL | C | B | 72 dB () | Details | |
| 285/70R19.5 | NEO ALLROADS S | 145/143M(146/144L) | TL | C | C | 72 dB () | Details | |
| 275/70R22.5 | NEO ALLROADS S | 148/145M | TL | D | B | 72 dB () | Details | |
| 295/80R22.5 | NEO ALLROADS S | 154/149M | TL | C | B | 70 dB () | Details | |
| 295/80R22.5 | NEO ALLROADS S | 154/149M | TL | D | C | 72 dB () | Details | |
| 315/70R22.5 | NEO ALLROADS S | 156/150L(152/148M) | TL | B | B | 73 dB () | Details | |
| 315/70R22.5 | NEO ALLROADS S | 156/150L(154/150M) | TL | C | B | 69 dB () | Details | |
| 315/80R22.5 | NEO ALLROADS S | 158/150L(154/150M) | TL | C | B | 71 dB () | Details | |
| 315/80R22.5 | NEO ALLROADS S | 158/150L(154/150M) | TL | B | C | 73 dB () | Details |
Specifications
| Size | 205/75R17.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 124/122M |
| Ply rating | 14 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | No |
| Recommended rim | 6.00 |
| Tread (mm) | 12.5 |
| Load capacity (kg-km/h) | 1600.000000 |
| Load capacity (kg-km/h) dual | 1500.000000 |
| Air pressure (bar) | 7.6 |
| Axle position | Steer axle |
Specifications
| Size | 215/75R17.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 126/124M |
| Ply rating | 16 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 761 |
| Width (mm) | 218 |
| Rolling circumference (mm) | 2,321 |
| Recommended rim | 6.00 |
| Tread (mm) | 12.5 |
| Load capacity (kg-km/h) | 1700.000000 |
| Load capacity (kg-km/h) dual | 1600.000000 |
| Air pressure (bar) | 7 |
| Wet grip | B |
| Fuel efficiency | D |
| Sound (decibel) | 69 dB |
| Axle position | Steer axle |
Specifications
| Size | 215/75R17.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 126/124M |
| Ply rating | 16 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 761 |
| Width (mm) | 218 |
| Rolling circumference (mm) | 2,321 |
| Recommended rim | 6.00 |
| Tread (mm) | 12.5 |
| Load capacity (kg-km/h) | 1700.000000 |
| Load capacity (kg-km/h) dual | 1600.000000 |
| Air pressure (bar) | 7 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 72 dB |
| Axle position | Steer axle |
Specifications
| Size | 235/75R17.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 132/130M |
| Ply rating | 16 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 793 |
| Width (mm) | 235 |
| Loaded radius (mm) | 370 |
| Rolling circumference (mm) | 2,419 |
| Recommended rim | 6.75 |
| Tread (mm) | 13 |
| Load capacity (kg-km/h) | 2000.000000 |
| Load capacity (kg-km/h) dual | 1900.000000 |
| Air pressure (bar) | 8.3 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 72 dB |
| Axle position | Steer axle |
Specifications
| Size | 235/75R17.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 132/130M |
| Ply rating | 16 |
| TL/TT | TL |
| Application | Regional transport |
| M+S | Yes |
| Diameter (mm) | 793 |
| Width (mm) | 235 |
| Loaded radius (mm) | 370 |
| Rolling circumference (mm) | 2,419 |
| Recommended rim | 6.75 |
| Tread (mm) | 13 |
| Air pressure (bar) | 8.3 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 73 dB |
| Sound (wave) | 2 |
| Axle position | Steer axle |
Specifications
| Size | 245/70R17.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 136/134M |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 792 |
| Width (mm) | 250 |
| Rolling circumference (mm) | 2,416 |
| Recommended rim | 7.50 |
| Tread (mm) | 15 |
| Air pressure (bar) | 8.5 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 72 dB |
| Axle position | Steer axle |
Specifications
| Size | 265/70R19.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 140M |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 868 |
| Width (mm) | 260 |
| Rolling circumference (mm) | 2,647 |
| Recommended rim | 7.50 |
| Tread (mm) | 13 |
| Load capacity (kg-km/h) | 2500.000000 |
| Air pressure (bar) | 8.5 |
| Wet grip | B |
| Fuel efficiency | C |
| Sound (decibel) | 72 dB |
| Axle position | Steer axle |
Specifications
| Size | 285/70R19.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 145/143M(146/144L) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 892 |
| Width (mm) | 291 |
| Rolling circumference (mm) | 2,721 |
| Recommended rim | 8.25 |
| Tread (mm) | 14 |
| Load capacity (kg-km/h) | 2900.000000 |
| Load capacity (kg-km/h) dual | 2720.000000 |
| Air pressure (bar) | 8.5 |
| Wet grip | C |
| Fuel efficiency | C |
| Sound (decibel) | 72 dB |
| Axle position | Steer axle |
Specifications
| Size | 275/70R22.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 148/145M |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | No |
| Diameter (mm) | 963 |
| Width (mm) | 281 |
| Rolling circumference (mm) | 2,955 |
| Recommended rim | 8.25 |
| Tread (mm) | 16.5 |
| Load capacity (kg-km/h) | 3150.000000 |
| Load capacity (kg-km/h) dual | 2900.000000 |
| Air pressure (bar) | 9 |
| Wet grip | B |
| Fuel efficiency | D |
| Sound (decibel) | 72 dB |
| Axle position | Steer axle |
Specifications
| Size | 295/80R22.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 154/149M |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,080 |
| Width (mm) | 298 |
| Rolling circumference (mm) | 3,294 |
| Recommended rim | 9.00 |
| Tread (mm) | 16.5 |
| Load capacity (kg-km/h) | 3750.000000 |
| Load capacity (kg-km/h) dual | 3250.000000 |
| Air pressure (bar) | 9 |
| Wet grip | B |
| Fuel efficiency | C |
| Sound (decibel) | 70 dB |
| Axle position | Steer axle |
Specifications
| Size | 295/80R22.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 154/149M |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,080 |
| Width (mm) | 298 |
| Loaded radius (mm) | 490 |
| Rolling circumference (mm) | 3,294 |
| Recommended rim | 9.00 |
| Tread (mm) | 16.5 |
| Load capacity (kg-km/h) | 3750.000000 |
| Load capacity (kg-km/h) dual | 3250.000000 |
| Air pressure (bar) | 9 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 72 dB |
| Axle position | Steer axle |
Specifications
| Size | 315/70R22.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 156/150L(152/148M) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,020 |
| Width (mm) | 310 |
| Loaded radius (mm) | 469 |
| Recommended rim | 9.00 |
| Tread (mm) | 15.5 |
| Load capacity (kg-km/h) | 4000.000000 |
| Load capacity (kg-km/h) dual | 3350.000000 |
| Wet grip | B |
| Fuel efficiency | B |
| Sound (decibel) | 73 dB |
| Axle position | Steer axle |
Specifications
| Size | 315/70R22.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 156/150L(154/150M) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,020 |
| Width (mm) | 310 |
| Rolling circumference (mm) | 3,102 |
| Recommended rim | 9.00 |
| Tread (mm) | 15.5 |
| Load capacity (kg-km/h) | 4000.000000 |
| Load capacity (kg-km/h) dual | 3350.000000 |
| Air pressure (bar) | 8 |
| Wet grip | B |
| Fuel efficiency | C |
| Sound (decibel) | 69 dB |
| Axle position | Steer axle |
Specifications
| Size | 315/80R22.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 158/150L(154/150M) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,085 |
| Width (mm) | 316 |
| Loaded radius (mm) | 500 |
| Rolling circumference (mm) | 3,309 |
| Recommended rim | 9.00 |
| Tread (mm) | 16 |
| Load capacity (kg-km/h) | 4250.000000 |
| Load capacity (kg-km/h) dual | 3350.000000 |
| Air pressure (bar) | 9 |
| Wet grip | B |
| Fuel efficiency | C |
| Sound (decibel) | 71 dB |
| Axle position | Steer axle |
Specifications
| Size | 315/80R22.5 |
|---|---|
| Profile | NEO ALLROADS S |
| LI/SS | 158/150L(154/150M) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Regional transport |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,085 |
| Width (mm) | 316 |
| Loaded radius (mm) | 500 |
| Rolling circumference (mm) | 3,309 |
| Recommended rim | 9.00 |
| Tread (mm) | 16 |
| Load capacity (kg-km/h) | 4250.000000 |
| Load capacity (kg-km/h) dual | 3350.000000 |
| Air pressure (bar) | 9 |
| Wet grip | C |
| Fuel efficiency | B |
| Sound (decibel) | 73 dB |
| Axle position | Steer axle |
