This is the successor of the A2235 tyre for mobile cranes, also known as Aeolus’ ‘highway service’ tyre. Both the 385/95R25 (170F) and the 445/95R25 (174F) are available directly from stock. Aeolus has the right tyre available for a wide range of jobs, including very specific and hard jobs.
The AR28+ is designed for mobile cranes that are deployed both on- and off-road. The tyre has a tread compound which gives it’s tread a so called progressive self-cleaning capacity and therefor had excellent traction in tough demanding conditions.

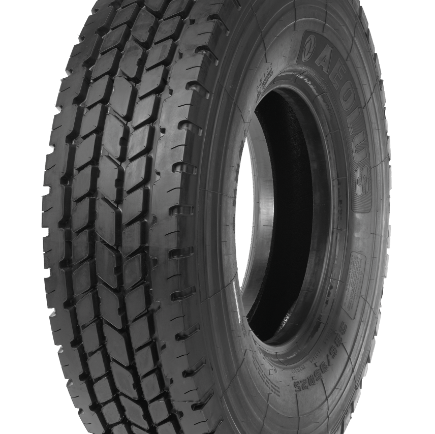

AR28+
- Long life-span
- Lower rolling resistance
- Excellent resistance against damage
- Suitable for speeds up to 80km/h
Technical data
Scroll naar rechts voor meer
Size | LI/SS | Star rating | Tread (mm) | |
---|---|---|---|---|
385/95R25 | 170F | *** | 23.5 | Details |
445/80R25 | 170E | *** | 28 | Details |
445/95R25 | 174F | *** | 25 | Details |
525/80R25 | 176F | *** | 28 | Details |
Specifications
Size | 385/95R25 |
---|---|
Profile | AR28+ |
TL/TT | TL |
Recommended rim | 10.00 |
Width (mm) | 390 |
Diameter (mm) | 1,361 |
Tread (mm) | 23.5 |
Load capacity (kg-km/h) | 6000.000000 |
Air pressure (bar) | 9 |
Radial/diagonal | Radiaal |
Application |
|
Specifications
Size | 445/80R25 |
---|---|
Profile | AR28+ |
TL/TT | TL |
Recommended rim | 14.00 |
Width (mm) | 446 |
Diameter (mm) | 1,350 |
Tread (mm) | 28 |
Load capacity (kg-km/h) | 6000.000000 |
Radial/diagonal | Radiaal |
Application |
|
Specifications
Size | 445/95R25 |
---|---|
Profile | AR28+ |
TL/TT | TL |
Recommended rim | 11.25 |
Width (mm) | 444 |
Diameter (mm) | 1,486 |
Tread (mm) | 25 |
Air pressure (bar) | 9 |
Radial/diagonal | Radiaal |
Application |
|
Specifications
Size | 525/80R25 |
---|---|
Profile | AR28+ |
TL/TT | TL |
Recommended rim | 17.00 |
Width (mm) | 530 |
Diameter (mm) | 1,478 |
Tread (mm) | 28 |
Radial/diagonal | Radiaal |
Application |
|
